Enerpac Bolt Tensioners

Compare Enerpac topside, subsea, power-generation and foundation bolt tensioning systems by thread size, load capacity, pressure, stroke, clearance, dimensions and weight.

Choose the tensioner by stud thread, required bolt load, stroke and the clearance available around the joint.

CONTROLLED AXIAL BOLT LOAD

Match the tensioner to the stud, nut and available clearance.

HM / GTTopside tensioning.

EAJAquajack® subsea tensioning.

PGTPower-generation bolting.

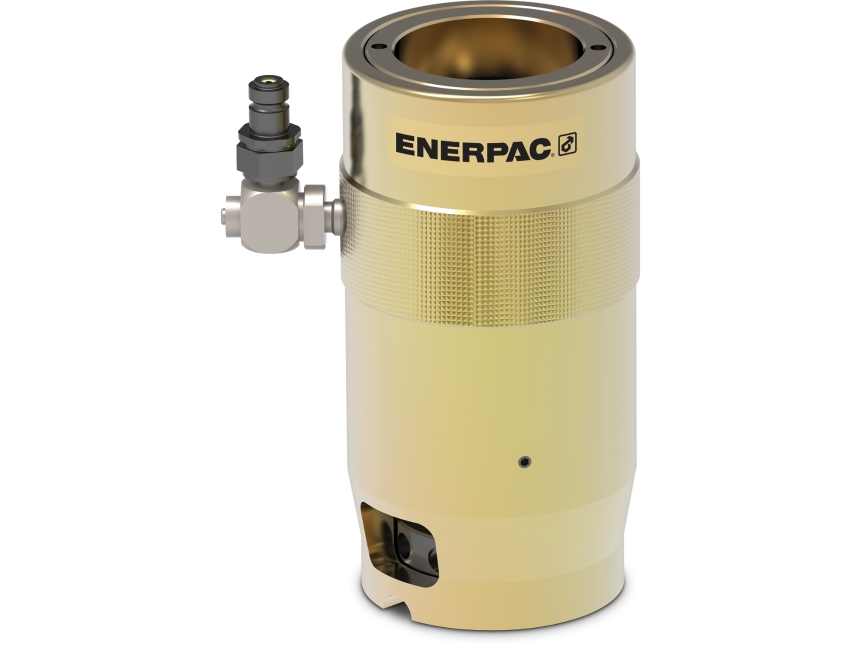

FTR / FTEWind-tower foundation tensioning.

FULL THREAD & TOOL DATA

Thread Size, Load Capacity, Pressure, Stroke & Clearances

Match the load cell, adaptor kit, quick-fastening nut or complete tensioner to the stud thread, required load and available clearance.

ThreadExact metric / imperial stud thread.

LoadEffective hydraulic area and maximum load.

ClearanceStud protrusion, obstruction clearance and body dimensions.

UseCommon applications and industries.

QUICK MODEL SEARCH

Find an Enerpac tensioner or adaptor

ENERPAC BOLTING

HydraMax® Topside Bolt Tensioners

HydraMax® load cells and adaptor/bridge kits for matching the tensioner to the required stud thread.

ENERPAC

HM Load Cells

15 VARIATIONS

HydraMax load cells with effective area, capacity, weight and pressure data.

COMMON APPLICATIONSTopside tensioning of process flanges, pressure vessels and other critical studded joints.

COMMON INDUSTRIESOil & gas, petrochemical, refineries and power generation.

QUICK MODEL SELECTOR

Select a model aboveSelect a model to see its specifications.

VIEW ALL 15 MODELS & FULL SPECIFICATIONS+

Model	Hydraulic Effective Area	Maximum Load Capacity	Load Cell / Bridge Weight	Maximum Operating Pressure
HM01-LC	1.39 in²	15.1 tons	3.5 lb	21,750 psi
HM02-LC	1.92 in²	20.9 tons	4.0 lb	21,750 psi
HM03-LC	2.52 in²	27.4 tons	4.9 lb	21,750 psi
HM04-LC	3.35 in²	36.4 tons	6.0 lb	21,750 psi
HM05-LC	4.27 in²	46.4 tons	7.3 lb	21,750 psi
HM06-LC	6.45 in²	70.2 tons	9.9 lb	21,750 psi
HM07-LC	7.72 in²	83.9 tons	11.5 lb	21,750 psi
HM08-LC	9.10 in²	98.9 tons	13.9 lb	21,750 psi
HM09-LC	10.59 in²	115.2 tons	14.3 lb	21,750 psi
HM10-LC	12.20 in²	132.6 tons	18.3 lb	21,750 psi
HM11-LC	15.74 in²	171.1 tons	16.3 lb	21,750 psi
HM12-LC	19.72 in²	214.4 tons	21.4 lb	21,750 psi
HM13-LC	26.29 in²	285.9 tons	32.0 lb	21,750 psi
HM14-LC	36.35 in²	395.3 tons	45.9 lb	21,750 psi
HM15-LC	48.06 in²	522.7 tons	66.1 lb	21,750 psi

ENERPAC

HM Adaptor & Bridge Kits

105 VARIATIONS

HM adaptor and bridge kits matched by thread size, compatible load cell, capacity and clearance requirements.

COMMON APPLICATIONSMatching a Hydramax load cell to the required stud thread and clearance envelope.

COMMON INDUSTRIESOil & gas, petrochemical, refineries and power generation.

QUICK MODEL SELECTOR

Select a model aboveSelect a model to see its specifications.

VIEW ALL 105 MODELS & FULL SPECIFICATIONS+

Model	Thread Size	Compatible Load Cell / Bridge	Hydraulic Effective Area	Maximum Load Capacity	Minimum Stud Protrusion (A)	Tensioner Body Height (B)	Bridge / Base Width (C)	Load-Cell Outside Diameter (D)	Overall Height incl. Hydraulic Connection (E)	Bridge / Socket Base Height (F)	Minimum Obstruction Clearance (N)	Load Cell / Bridge Weight	Adaptor / Bridge Kit Weight	Maximum Operating Pressure
HM01BPM-NRS02025	M20 x 2,5	HM01-LC	1.39 in²	15.1 tons	4.4 in.	3.8 in.	0.6 in.	2.7 in.	7.8 in.	1.1 in.	2.0 in.	3.5 lb	1.3 lb	21,750 psi
HM01BP-NRS0750U10	¾"- 10un	HM01-LC	1.39 in²	15.1 tons	4.4 in.	3.8 in.	0.6 in.	2.7 in.	7.8 in.	1.1 in.	2.0 in.	3.5 lb	1.3 lb	21,750 psi
HM02BPM-NRS02025	M20 x 2,5	HM02-LC	1.92 in²	20.9 tons	4.7 in.	4.1 in.	0.6 in.	2.9 in.	8.2 in.	1.1 in.	2.1 in.	4.0 lb	2.0 lb	21,750 psi
HM02BPM-NRS02225	M22 x 2,5	HM02-LC	1.92 in²	20.9 tons	4.7 in.	4.1 in.	0.6 in.	2.9 in.	8.2 in.	1.1 in.	2.1 in.	4.0 lb	2.0 lb	21,750 psi
HM02BP-NRS0750U10	¾"- 10un	HM02-LC	1.92 in²	20.9 tons	4.7 in.	4.1 in.	0.6 in.	2.9 in.	8.2 in.	1.1 in.	2.0 in.	4.0 lb	2.0 lb	21,750 psi
HM02BP-NRS0875U09	⅞"-9un	HM02-LC	1.92 in²	20.9 tons	4.7 in.	4.1 in.	0.7 in.	2.9 in.	8.2 in.	1.1 in.	2.2 in.	4.0 lb	1.8 lb	21,750 psi
HM03BPM-NRS02025	M20 x 2,5	HM03-LC	2.52 in²	27.4 tons	4.7 in.	4.1 in.	0.6 in.	3.2 in.	8.3 in.	1.1 in.	2.2 in.	4.9 lb	2.4 lb	21,750 psi
HM03BPM-NRS02225	M22 x 2,5	HM03-LC	2.52 in²	27.4 tons	4.7 in.	4.1 in.	0.6 in.	3.2 in.	8.3 in.	1.1 in.	2.3 in.	4.9 lb	2.4 lb	21,750 psi
HM03BPM-NRS02430	M24 x 3	HM03-LC	2.52 in²	27.4 tons	4.7 in.	4.1 in.	0.8 in.	3.2 in.	8.3 in.	1.1 in.	2.3 in.	4.9 lb	2.4 lb	21,750 psi
HM03BP-NRS0750U10	¾"- 10un	HM03-LC	2.52 in²	27.4 tons	4.7 in.	4.1 in.	0.6 in.	3.2 in.	8.3 in.	1.1 in.	2.2 in.	4.9 lb	2.4 lb	21,750 psi
HM03BP-NRS0875U09	⅞"- 9un	HM03-LC	2.52 in²	27.4 tons	4.7 in.	4.1 in.	0.7 in.	3.2 in.	8.3 in.	1.1 in.	2.3 in.	4.9 lb	2.4 lb	21,750 psi
HM03BP-NRS1000U08	1"- 8un	HM03-LC	2.52 in²	27.4 tons	4.9 in.	4.3 in.	0.8 in.	3.2 in.	8.5 in.	1.3 in.	2.4 in.	4.9 lb	2.4 lb	21,750 psi
HM04BPM-NRS02225	M22 x 2,5	HM04-LC	3.35 in²	36.4 tons	5.0 in.	4.4 in.	0.7 in.	3.5 in.	9.1 in.	1.1 in.	2.4 in.	6.0 lb	3.5 lb	21,750 psi
HM04BPM-NRS02430	M24 x 3	HM04-LC	3.35 in²	36.4 tons	5.1 in.	4.4 in.	0.8 in.	3.5 in.	9.1 in.	1.1 in.	2.5 in.	6.0 lb	3.5 lb	21,750 psi
HM04BPM-NRS02730	M27 x 3	HM04-LC	3.35 in²	36.4 tons	5.3 in.	4.6 in.	0.8 in.	3.5 in.	9.3 in.	1.3 in.	2.5 in.	6.0 lb	3.7 lb	21,750 psi
HM04BPM-NRS03035	M30 x 3,5	HM04-LC	3.35 in²	36.4 tons	5.4 in.	4.7 in.	0.9 in.	3.5 in.	9.4 in.	1.4 in.	2.6 in.	6.0 lb	3.7 lb	21,750 psi
HM04BP-NRS0875U09	⅞"- 9un	HM04-LC	3.35 in²	36.4 tons	5.1 in.	4.4 in.	0.7 in.	3.5 in.	9.1 in.	1.1 in.	2.4 in.	6.0 lb	3.5 lb	21,750 psi
HM04BP-NRS1000U08	1"- 8un	HM04-LC	3.35 in²	36.4 tons	5.3 in.	4.6 in.	0.8 in.	3.5 in.	9.3 in.	1.3 in.	2.5 in.	6.0 lb	3.7 lb	21,750 psi
HM04BP-NRS1125U08	1⅛"- 8un	HM04-LC	3.35 in²	36.4 tons	5.4 in.	4.7 in.	0.9 in.	3.5 in.	9.4 in.	1.4 in.	2.6 in.	6.0 lb	3.7 lb	21,750 psi
HM05BPM-NRS02430	M24 x 3	HM05-LC	4.27 in²	46.4 tons	5.1 in.	4.5 in.	0.7 in.	3.9 in.	9.2 in.	1.1 in.	2.7 in.	7.3 lb	4.2 lb	21,750 psi
HM05BPM-NRS02730	M27 x 3	HM05-LC	4.27 in²	46.4 tons	5.3 in.	4.7 in.	0.8 in.	3.9 in.	9.4 in.	1.3 in.	2.7 in.	7.3 lb	4.4 lb	21,750 psi
HM05BPM-NRS03035	M30 x 3,5	HM05-LC	4.27 in²	46.4 tons	5.5 in.	4.8 in.	0.9 in.	3.9 in.	9.5 in.	1.4 in.	2.8 in.	7.3 lb	4.4 lb	21,750 psi
HM05BPM-NRS03335	M33 x 3,5	HM05-LC	4.27 in²	46.4 tons	5.6 in.	4.9 in.	1.1 in.	3.9 in.	9.6 in.	1.5 in.	2.8 in.	7.3 lb	4.6 lb	21,750 psi
HM05BP-NRS1000U08	1"-8un	HM05-LC	4.27 in²	46.4 tons	5.3 in.	4.7 in.	0.8 in.	3.9 in.	9.4 in.	1.3 in.	2.7 in.	7.3 lb	4.6 lb	21,750 psi
HM05BP-NRS1125U08	1⅛"-8un	HM05-LC	4.27 in²	46.4 tons	5.5 in.	4.8 in.	0.9 in.	3.9 in.	9.5 in.	1.4 in.	2.7 in.	7.3 lb	4.6 lb	21,750 psi
HM05BP-NRS1250U08	1¼"-8un	HM05-LC	4.27 in²	46.4 tons	5.6 in.	4.9 in.	1.1 in.	3.9 in.	9.6 in.	1.5 in.	2.8 in.	7.3 lb	4.6 lb	21,750 psi
HM06BPM-NRS03035	M30 x 3,5	HM06-LC	6.45 in²	70.2 tons	5.6 in.	5.0 in.	0.9 in.	4.6 in.	9.7 in.	1.4 in.	3.1 in.	9.9 lb	6.2 lb	21,750 psi
HM06BPM-NRS03335	M33 x 3,5	HM06-LC	6.45 in²	70.2 tons	5.7 in.	5.1 in.	1.1 in.	4.6 in.	9.8 in.	1.5 in.	3.2 in.	9.9 lb	6.4 lb	21,750 psi
HM06BPM-NRS03640	M36 x 4	HM06-LC	6.45 in²	70.2 tons	5.9 in.	5.2 in.	1.3 in.	4.6 in.	9.9 in.	1.6 in.	3.3 in.	9.9 lb	6.6 lb	21,750 psi
HM06BPM-NRS03940	M39 x 4	HM06-LC	6.45 in²	70.2 tons	6.0 in.	5.3 in.	1.3 in.	4.6 in.	10.0 in.	1.8 in.	3.3 in.	9.9 lb	6.8 lb	21,750 psi
HM06BP-NRS1125U08	1⅛"- 8un	HM06-LC	6.45 in²	70.2 tons	5.6 in.	5.0 in.	0.9 in.	4.6 in.	9.7 in.	1.4 in.	3.1 in.	9.9 lb	6.2 lb	21,750 psi
HM06BP-NRS1250U08	1¼"- 8un	HM06-LC	6.45 in²	70.2 tons	5.7 in.	5.1 in.	1.1 in.	4.6 in.	9.8 in.	1.5 in.	3.2 in.	9.9 lb	6.4 lb	21,750 psi
HM06BP-NRS1375U08	1⅜"- 8un	HM06-LC	6.45 in²	70.2 tons	5.9 in.	5.2 in.	1.3 in.	4.6 in.	9.9 in.	1.6 in.	3.2 in.	9.9 lb	6.6 lb	21,750 psi
HM06BP-NRS1500U08	1½"- 8un	HM06-LC	6.45 in²	70.2 tons	6.0 in.	5.3 in.	1.3 in.	4.6 in.	10.0 in.	1.8 in.	3.3 in.	9.9 lb	6.8 lb	21,750 psi
HM07BPM-NRS03335	M33 x 3,5	HM07-LC	7.72 in²	83.9 tons	5.7 in.	5.0 in.	1.1 in.	5.0 in.	9.7 in.	1.5 in.	3.4 in.	11.5 lb	7.5 lb	21,750 psi
HM07BPM-NRS03640	M36 x 4	HM07-LC	7.72 in²	83.9 tons	5.8 in.	5.2 in.	1.3 in.	5.0 in.	9.8 in.	1.6 in.	3.4 in.	11.5 lb	7.7 lb	21,750 psi
HM07BPM-NRS03940	M39 x 4	HM07-LC	7.72 in²	83.9 tons	5.9 in.	5.3 in.	1.3 in.	5.0 in.	9.9 in.	1.8 in.	3.5 in.	11.5 lb	7.9 lb	21,750 psi
HM07BPM-NRS04245	M42 x 4,5	HM07-LC	7.72 in²	83.9 tons	6.1 in.	5.4 in.	1.3 in.	5.0 in.	10.0 in.	1.9 in.	3.6 in.	11.5 lb	8.2 lb	21,750 psi
HM07BP-NRS1250U08	1¼"- 8un	HM07-LC	7.72 in²	83.9 tons	5.7 in.	5.0 in.	1.1 in.	5.0 in.	9.7 in.	1.5 in.	3.4 in.	11.5 lb	7.5 lb	21,750 psi
HM07BP-NRS1375U08	1⅜"- 8un	HM07-LC	7.72 in²	83.9 tons	5.8 in.	5.2 in.	1.3 in.	5.0 in.	9.8 in.	1.6 in.	3.4 in.	11.5 lb	7.7 lb	21,750 psi
HM07BP-NRS1500U08	1½"- 8un	HM07-LC	7.72 in²	83.9 tons	5.9 in.	5.3 in.	1.3 in.	5.0 in.	9.9 in.	1.8 in.	3.5 in.	11.5 lb	7.9 lb	21,750 psi
HM07BP-NRS1625U08	1⅝"- 8un	HM07-LC	7.72 in²	83.9 tons	6.1 in.	5.4 in.	1.3 in.	5.0 in.	10.0 in.	1.9 in.	3.5 in.	11.5 lb	8.2 lb	21,750 psi
HM08BPM-NRS03640	M36 x 4	HM08-LC	9.10 in²	98.9 tons	5.9 in.	5.2 in.	1.3 in.	5.4 in.	9.9 in.	1.6 in.	3.6 in.	13.9 lb	8.6 lb	21,750 psi
HM08BPM-NRS03940	M39 x 4	HM08-LC	9.10 in²	98.9 tons	6.0 in.	5.3 in.	1.3 in.	5.4 in.	10.0 in.	1.8 in.	3.7 in.	13.9 lb	8.8 lb	21,750 psi
HM08BPM-NRS04245	M42 x 4,5	HM08-LC	9.10 in²	98.9 tons	6.1 in.	5.5 in.	1.3 in.	5.4 in.	10.1 in.	1.9 in.	3.8 in.	13.9 lb	9.0 lb	21,750 psi
HM08BPM-NRS04545	M45 x 4,5	HM08-LC	9.10 in²	98.9 tons	6.2 in.	5.6 in.	1.5 in.	5.4 in.	10.3 in.	2.0 in.	3.8 in.	13.9 lb	9.7 lb	21,750 psi
HM08BP-NRS1375U08	1⅜"- 8un	HM08-LC	9.10 in²	98.9 tons	5.9 in.	5.2 in.	1.3 in.	5.4 in.	9.9 in.	1.6 in.	3.6 in.	13.9 lb	8.6 lb	21,750 psi
HM08BP-NRS1500U08	1½"- 8un	HM08-LC	9.10 in²	98.9 tons	6.0 in.	5.3 in.	1.3 in.	5.4 in.	10.0 in.	1.8 in.	3.7 in.	13.9 lb	8.8 lb	21,750 psi
HM08BP-NRS1625U08	1⅝"- 8un	HM08-LC	9.10 in²	98.9 tons	6.1 in.	5.5 in.	1.3 in.	5.4 in.	10.1 in.	1.9 in.	3.7 in.	13.9 lb	9.0 lb	21,750 psi
HM08BP-NRS1750U08	1¾"- 8un	HM08-LC	9.10 in²	98.9 tons	6.2 in.	5.6 in.	1.5 in.	5.4 in.	10.3 in.	2.0 in.	3.8 in.	13.9 lb	9.7 lb	21,750 psi
HM09BPM-NRS03940	M39 x 4	HM09-LC	10.59 in²	115.2 tons	6.0 in.	5.4 in.	1.3 in.	5.7 in.	10.0 in.	1.8 in.	3.9 in.	14.3 lb	11.0 lb	21,750 psi
HM09BPM-NRS04245	M42 x 4,5	HM09-LC	10.59 in²	115.2 tons	6.1 in.	5.5 in.	1.3 in.	5.7 in.	10.1 in.	1.9 in.	3.9 in.	14.3 lb	13.4 lb	21,750 psi
HM09BPM-NRS04545	M45 x 4,5	HM09-LC	10.59 in²	115.2 tons	6.2 in.	5.6 in.	1.5 in.	5.7 in.	10.3 in.	2.0 in.	4.0 in.	14.3 lb	11.2 lb	21,750 psi
HM09BPM-NRS04850	M48 x 5	HM09-LC	10.59 in²	115.2 tons	6.4 in.	5.7 in.	1.6 in.	5.7 in.	10.4 in.	2.1 in.	4.0 in.	14.3 lb	12.1 lb	21,750 psi
HM09BP-NRS1500U08	1½"- 8un	HM09-LC	10.59 in²	115.2 tons	6.0 in.	5.4 in.	1.3 in.	5.7 in.	10.0 in.	1.8 in.	3.8 in.	14.3 lb	11.2 lb	21,750 psi
HM09BP-NRS1625U08	1⅝"- 8un	HM09-LC	10.59 in²	115.2 tons	6.1 in.	5.5 in.	1.3 in.	5.7 in.	10.2 in.	1.9 in.	3.9 in.	14.3 lb	11.2 lb	21,750 psi
HM09BP-NRS1750U08	1¾"- 8un	HM09-LC	10.59 in²	115.2 tons	6.2 in.	5.5 in.	1.5 in.	5.7 in.	10.1 in.	2.0 in.	4.0 in.	14.3 lb	13.2 lb	21,750 psi
HM09BP-NRS1875U08	1⅞"- 8un	HM09-LC	10.59 in²	115.2 tons	6.4 in.	5.7 in.	1.6 in.	5.7 in.	10.4 in.	2.1 in.	4.0 in.	14.3 lb	11.9 lb	21,750 psi
HM10BPM-NRS04245	M42 x 4,5	HM10-LC	12.20 in²	132.6 tons	6.3 in.	5.6 in.	1.3 in.	6.1 in.	10.5 in.	1.9 in.	4.1 in.	18.3 lb	12.6 lb	21,750 psi
HM10BPM-NRS04545	M45 x 4,5	HM10-LC	12.20 in²	131.9 tons	6.4 in.	5.7 in.	1.5 in.	6.1 in.	10.6 in.	2.0 in.	4.2 in.	18.3 lb	12.6 lb	21,750 psi
HM10BPM-NRS04850	M48 x 5	HM10-LC	12.20 in²	131.9 tons	6.5 in.	5.8 in.	1.6 in.	6.1 in.	10.7 in.	2.1 in.	4.3 in.	18.3 lb	13.4 lb	21,750 psi
HM10BPM-NRS05250	M52 x 5	HM10-LC	12.20 in²	131.9 tons	6.7 in.	6.0 in.	1.7 in.	6.1 in.	10.8 in.	2.3 in.	4.3 in.	18.3 lb	13.9 lb	21,750 psi
HM10BP-NRS1625U08	1⅝"- 8un	HM10-LC	12.20 in²	131.9 tons	6.3 in.	5.6 in.	1.3 in.	6.1 in.	10.5 in.	1.9 in.	4.1 in.	18.3 lb	12.6 lb	21,750 psi
HM10BP-NRS1750U08	1¾"- 8un	HM10-LC	12.20 in²	131.9 tons	6.4 in.	5.7 in.	1.5 in.	6.1 in.	10.6 in.	2.0 in.	4.2 in.	18.3 lb	12.3 lb	21,750 psi
HM10BP-NRS1875U08	1⅞"- 8un	HM10-LC	12.20 in²	131.9 tons	6.5 in.	5.9 in.	1.6 in.	6.1 in.	10.7 in.	2.1 in.	4.2 in.	18.3 lb	13.2 lb	21,750 psi
HM10BP-NRS2000U08	2"- 8un	HM10-LC	12.20 in²	131.9 tons	6.7 in.	6.0 in.	1.7 in.	6.1 in.	10.8 in.	2.3 in.	4.3 in.	18.3 lb	13.9 lb	21,750 psi
HM11BPM-NRS04545	M45 x 4,5	HM11-LC	15.74 in²	171.1 tons	6.6 5.7 in.	1.5 in.	6.9 in.	10.8 in.	2.0 in.	4.6 in.	23.1 in.	16.3 lb		21,750 psi
HM11BPM-NRS04850	M48 x 5	HM11-LC	15.74 in²	171.1 tons	6.7 5.8 in.	1.6 in.	6.9 in.	10.9 in.	2.1 in.	4.6 in.	23.1 in.	17.4 lb		21,750 psi
HM11BPM-NRS05250	M52 x 5	HM11-LC	15.74 in²	171.1 tons	6.8 6.0 in.	1.7 in.	6.9 in.	11.0 in.	2.3 in.	4.7 in.	23.1 in.	17.9 lb		21,750 psi
HM11BPM-NRS05655	M56 x 5,5	HM11-LC	15.74 in²	171.1 tons	7.2 6.3 in.	2.0 in.	6.9 in.	11.4 in.	2.6 in.	4.8 in.	23.1 in.	20.1 lb		21,750 psi
HM11BPM-NRS06055	M60 x 5,5	HM11-LC	15.74 in²	171.1 tons	7.2 6.3 in.	2.0 in.	6.9 in.	11.4 in.	2.6 in.	4.9 in.	23.1 in.	19.2 lb		21,750 psi
HM11BP-NRS1750U08	1¾"- 8un	HM11-LC	15.74 in²	171.1 tons	6.6 5.7 in.	1.5 in.	6.9 in.	10.8 in.	2.0 in.	4.6 in.	23.1 in.	16.5 lb		21,750 psi
HM11BP-NRS1875U08	1⅞"- 8un	HM11-LC	15.74 in²	171.1 tons	6.7 5.8 in.	1.6 in.	6.9 in.	10.9 in.	2.1 in.	4.6 in.	23.1 in.	17.4 lb		21,750 psi
HM11BP-NRS2000U08	2"- 8un	HM11-LC	15.74 in²	171.1 tons	6.8 6.0 in.	1.7 in.	6.9 in.	11.0 in.	2.3 in.	4.7 in.	23.1 in.	17.9 lb		21,750 psi
HM11BP-NRS2250U08	2¼"- 8un	HM11-LC	15.74 in²	171.1 tons	7.2 6.3 in.	2.0 in.	6.9 in.	11.4 in.	2.6 in.	4.8 in.	23.1 in.	19.4 lb		21,750 psi
HM12BPM-NRS04850	M48 x 5	HM12-LC	19.72 in²	214.4 tons	6.7 5.8 in.	1.6 in.	7.6 in.	11.0 in.	2.1 in.	5.0 in.	29.3 in.	21.4 lb		21,750 psi
HM12BPM-NRS05250	M52 x 5	HM12-LC	19.72 in²	214.4 tons	6.8 6.0 in.	1.7 in.	7.6 in.	11.2 in.	2.3 in.	5.1 in.	29.3 in.	21.6 lb		21,750 psi
HM12BPM-NRS05655	M56 x 5,5	HM12-LC	19.72 in²	214.4 tons	7.2 6.3 in.	2.0 in.	7.6 in.	11.5 in.	2.6 in.	5.2 in.	29.3 in.	23.6 lb		21,750 psi
HM12BPM-NRS06055	M60 x 5,5	HM12-LC	19.72 in²	214.4 tons	7.2 6.3 in.	2.0 in.	7.6 in.	11.5 in.	2.7 in.	5.2 in.	29.3 in.	22.9 lb		21,750 psi
HM12BPM-NRS06460	M64 x 6	HM12-LC	19.72 in²	214.4 tons	7.3 6.5 in.	2.2 in.	7.6 in.	11.7 in.	2.7 in.	5.3 in.	29.3 in.	24.5 lb		21,750 psi
HM12BP-NRS1875U08	1⅞"- 8un	HM12-LC	19.72 in²	214.4 tons	6.7 5.8 in.	1.6 in.	7.6 in.	11.0 in.	2.1 in.	5.0 in.	29.3 in.	21.2 lb		21,750 psi
HM12BP-NRS2000U08	2"- 8un	HM12-LC	19.72 in²	214.4 tons	6.8 6.0 in.	1.7 in.	7.6 in.	11.2 in.	2.3 in.	5.1 in.	29.3 in.	21.6 lb		21,750 psi
HM12BP-NRS2250U08	2¼"- 8un	HM12-LC	19.72 in²	214.4 tons	7.2 6.3 in.	2.0 in.	7.6 in.	11.5 in.	2.6 in.	5.2 in.	29.3 in.	22.9 lb		21,750 psi
HM12BP-NRS2500U08	2½"- 8un	HM12-LC	19.72 in²	214.4 tons	7.3 6.5 in.	2.2 in.	7.6 in.	11.7 in.	2.7 in.	5.3 in.	29.3 in.	23.8 lb		21,750 psi
HM13BPM-NRS06460	M64 x 6	HM13-LC	26.29 in²	285.9 tons	7.7 6.8 in.	2.2 in.	8.6 in.	12.2 in.	2.7 in.	5.8 in.	38.8 in.	32.0 lb		21,750 psi
HM13BPM-NRS06860	M68 x 6	HM13-LC	26.29 in²	285.9 tons	7.7 6.8 in.	2.2 in.	8.6 in.	12.2 in.	2.7 in.	5.9 in.	38.8 in.	36.4 lb		21,750 psi
HM13BPM-NRS07260	M72 x 6	HM13-LC	26.29 in²	285.9 tons	8.0 7.1 in.	2.5 in.	8.6 in.	12.5 in.	3.1 in.	6.0 in.	38.8 in.	35.3 lb		21,750 psi
HM13BPM-NRS07660	M76 x 6	HM13-LC	26.29 in²	285.9 tons	8.1 7.3 in.	2.7 in.	8.6 in.	12.7 in.	3.2 in.	6.0 in.	38.8 in.	35.9 lb		21,750 psi
HM13BP-NRS2500U08	2½"- 8un	HM13-LC	26.29 in²	285.9 tons	7.7 6.8 in.	2.2 in.	8.6 in.	12.2 in.	2.7 in.	5.8 in.	38.8 in.	31.3 lb		21,750 psi
HM13BP-NRS2750U08	2¾"- 8un	HM13-LC	26.29 in²	285.9 tons	8.0 7.1 in.	2.5 in.	8.6 in.	12.5 in.	3.1 in.	5.9 in.	38.8 in.	34.8 lb		21,750 psi
HM13BP-NRS3000U08	3"- 8un	HM13-LC	26.29 in²	285.9 tons	8.1 7.3 in.	2.7 in.	8.6 in.	12.7 in.	3.2 in.	6.3 in.	38.8 in.	34.8 lb		21,750 psi
HM14BPM-NRS07260	M72 x 6	HM14-LC	36.35 in²	395.3 tons	8.0 7.1 in.	2.5 in.	10.2 in.	12.6 in.	3.1 in.	6.8 in.	56.9 in.	45.9 lb		21,750 psi
HM14BPM-NRS07660	M76 x 6	HM14-LC	36.35 in²	395.3 tons	8.1 7.3 in.	2.7 in.	10.2 in.	12.7 in.	3.2 in.	6.8 in.	56.9 in.	47.0 lb		21,750 psi
HM14BPM-NRS08060	M80 x 6	HM14-LC	36.35 in²	395.3 tons	8.1 7.3 in.	2.7 in.	10.2 in.	12.7 in.	3.2 in.	6.9 in.	56.9 in.	46.7 lb		21,750 psi
HM14BPM-NRS08560	M85 x 6	HM14-LC	36.35 in²	395.3 tons	8.5 6.5 in.	2.7 in.	10.2 in.	11.9 in.	3.6 in.	7.0 in.	56.9 in.	50.5 lb		21,750 psi
HM14BPM-NRS09060	M90 x 6	HM14-LC	36.35 in²	395.3 tons	8.7 7.8 in.	3.1 in.	10.2 in.	13.3 in.	3.8 in.	7.1 in.	56.9 in.	51.4 lb		21,750 psi
HM14BP-NRS3000U08	3"- 8un	HM14-LC	36.35 in²	395.3 tons	8.1 7.3 in.	2.7 in.	10.2 in.	12.7 in.	3.2 in.	6.8 in.	56.9 in.	45.0 lb		21,750 psi
HM14BP-NRS3250U08	3¼"- 8un	HM14-LC	36.35 in²	395.3 tons	8.5 6.5 in.	2.7 in.	10.2 in.	11.9 in.	3.6 in.	7.0 in.	56.9 in.	50.0 lb		21,750 psi
HM14BP-NRS3500U08	3½"- 8un	HM14-LC	36.35 in²	395.3 tons	8.7 7.8 in.	3.1 in.	10.2 in.	13.3 in.	3.8 in.	7.2 in.	56.9 in.	52.7 lb		21,750 psi
HM15BPM-NRS09060	M90 x 6	HM15-LC	48.06 in²	522.7 tons	8.7 7.8 in.	3.1 in.	11.7 in.	13.3 in.	3.8 in.	7.8 in.	71.6 in.	66.1 lb		21,750 psi
HM15BPM-NRS09560	M95 x 6	HM15-LC	48.06 in²	522.7 tons	8.9 8.1 in.	3.2 in.	11.7 in.	13.5 in.	4.0 in.	7.9 in.	71.6 in.	74.3 lb		21,750 psi
HM15BPM-NRS10060	M100 x 6	HM15-LC	48.06 in²	522.7 tons	9.1 8.3 in.	3.5 in.	11.7 in.	13.7 in.	4.2 in.	8.0 in.	71.6 in.	77.4 lb		21,750 psi
HM15BP-NRS3500U08	3½"- 8un	HM15-LC	48.06 in²	522.7 tons	8.7 7.8 in.	3.1 in.	11.7 in.	13.3 in.	3.8 in.	7.8 in.	71.6 in.	65.0 lb		21,750 psi
HM15BP-NRS3750U08	3¾"- 8un	HM15-LC	48.06 in²	522.7 tons	8.9 8.1 in.	3.2 in.	11.7 in.	13.5 in.	4.0 in.	7.9 in.	71.6 in.	72.3 lb		21,750 psi
HM15BP-NRS4000U08	4"- 8un	HM15-LC	48.06 in²	522.7 tons	9.1 8.3 in.	3.5 in.	11.7 in.	13.7 in.	4.2 in.	8.3 in.	71.6 in.	75.0 lb		21,750 psi

ENERPAC BOLTING

GT-Series Topside Bolt Tensioners

GT load-cell/bridge assemblies and available thread adaptor kit.

ENERPAC

GT Load Cell & Bridge Assemblies

7 VARIATIONS

GT load-cell and bridge assemblies.

COMMON APPLICATIONSTopside hydraulic bolt tensioning where a detachable rotational bridge is preferred.

COMMON INDUSTRIESOil & gas, pipelines, petrochemical and power generation.

QUICK MODEL SELECTOR

Select a model aboveSelect a model to see its specifications.

VIEW ALL 7 MODELS & FULL SPECIFICATIONS+

Model	Hydraulic Effective Area	Maximum Load Capacity	Load Cell / Bridge Weight	Maximum Operating Pressure
GT1-LCB	2.32 in²	25.2 tons	6.6 lb	21,750 psi
GT2-LCB	4.15 in²	45.1 tons	9.0 lb	21,750 psi
GT3-LCB	7.95 in²	86.4 tons	15.4 lb	21,750 psi
GT4-LCB	15.17 in²	164.9 tons	26.9 lb	21,750 psi
GT5-LCB	23.37 in²	254.2 tons	38.3 lb	21,750 psi
GT6-LCB	29.41 in²	319.8 tons	61.3 lb	21,750 psi
GT7-LCB	40.90 in²	444.9 tons	84.2 lb	21,750 psi

ENERPAC

GT Adaptor Kits

55 VARIATIONS

Every GT thread adaptor kit with full published dimensions and load data.

COMMON APPLICATIONSMatching GT load cells to imperial or metric stud threads.

COMMON INDUSTRIESOil & gas, pipelines, petrochemical and power generation.

QUICK MODEL SELECTOR

Select a model aboveSelect a model to see its specifications.

VIEW ALL 55 MODELS & FULL SPECIFICATIONS+

Model	Thread Size	Compatible Load Cell / Bridge	Hydraulic Effective Area	Maximum Load Capacity	Minimum Stud Protrusion (A)	Tensioner Body Height (B)	Bridge / Base Width (C)	Load-Cell Outside Diameter (D)	Overall Height incl. Hydraulic Connection (E)	Bridge / Socket Base Height (F)	Minimum Obstruction Clearance (N)	Load Cell / Bridge Weight	Adaptor / Bridge Kit Weight	Maximum Operating Pressure
GT1PM-NRS01620	M16 x 2	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.2 in.	6.6 lb	3.5 lb	21,750 psi
GT1PM-NRS01825	M18 x 2,5	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.3 in.	6.6 lb	3.3 lb	21,750 psi
GT1PM-NRS02025	M20 x 2,5	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.3 in.	6.6 lb	3.1 lb	21,750 psi
GT1PM-NRS02430	M24 x 3	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.4 in.	6.6 lb	2.9 lb	21,750 psi
GT1PM-NRS02730	M27 x 3	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.5 in.	6.6 lb	2.6 lb	21,750 psi
GT1PM-NRS03035	M30 x 3,5	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.6 in.	6.6 lb	2.2 lb	21,750 psi
GT1P-NRS0625U11	⅝"- 11un	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.2 in.	6.6 lb	3.5 lb	21,750 psi
GT1P-NRS0750U10	¾"- 10un	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.3 in.	6.6 lb	3.1 lb	21,750 psi
GT1P-NRS0875U09	⅞"- 9un	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.4 in.	6.6 lb	2.9 lb	21,750 psi
GT1P-NRS1000U08	1"- 8un	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.5 in.	6.6 lb	2.6 lb	21,750 psi
GT1P-NRS1125U08	1⅛"- 8un	GT1-LCB	2.32 in²	25.2 tons	5.3 in.	4.4 in.	1.1 in.	3.4 in.	9.6 in.	1.7 in.	2.6 in.	6.6 lb	2.2 lb	21,750 psi
GT2PM-NRS03035	M30 x 3,5	GT2-LCB	4.15 in²	45.1 tons	5.4 in.	4.4 in.	1.4 in.	4.2 in.	8.9 in.	1.6 in.	2.9 in.	9.0 lb	5.7 lb	21,750 psi
GT2PM-NRS03335	M33 x 3,5	GT2-LCB	4.15 in²	45.1 tons	5.4 in.	4.4 in.	1.4 in.	4.2 in.	8.9 in.	1.6 in.	3.0 in.	9.0 lb	5.3 lb	21,750 psi
GT2PM-NRS03640	M36 x 4	GT2-LCB	4.15 in²	45.1 tons	5.4 in.	4.4 in.	1.4 in.	4.2 in.	8.9 in.	1.6 in.	3.1 in.	9.0 lb	4.9 lb	21,750 psi
GT2PM-NRS03940	M39 x 4	GT2-LCB	4.15 in²	45.1 tons	5.4 in.	4.4 in.	1.4 in.	4.2 in.	8.9 in.	1.6 in.	3.2 in.	9.0 lb	4.2 lb	21,750 psi
GT2P-NRS1125U08	1⅛"- 8un	GT2-LCB	4.15 in²	45.1 tons	5.4 in.	4.4 in.	1.4 in.	4.2 in.	8.9 in.	1.6 in.	2.9 in.	9.0 lb	5.7 lb	21,750 psi
GT2P-NRS1250U08	1¼"- 8un	GT2-LCB	4.15 in²	45.1 tons	5.4 in.	4.4 in.	1.4 in.	4.2 in.	8.9 in.	1.6 in.	3.0 in.	9.0 lb	5.3 lb	21,750 psi
GT2P-NRS1375U08	1⅜"- 8un	GT2-LCB	4.15 in²	45.1 tons	5.4 in.	4.4 in.	1.4 in.	4.2 in.	8.9 in.	1.6 in.	3.1 in.	9.0 lb	4.9 lb	21,750 psi
GT2P-NRS1500U08	1½"- 8un	GT2-LCB	4.15 in²	45.1 tons	5.4 in.	4.4 in.	1.4 in.	4.2 in.	8.9 in.	1.6 in.	3.2 in.	9.0 lb	4.4 lb	21,750 psi
GT3PM-NRS03940	M39 x 4	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	3.8 in.	15.4 lb	12.6 lb	21,750 psi
GT3PM-NRS04245	M42 x 4,5	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	3.9 in.	15.4 lb	11.9 lb	21,750 psi
GT3PM-NRS04545	M45 x 4,5	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	4.0 in.	15.4 lb	11.0 lb	21,750 psi
GT3PM-NRS04850	M48 x 5	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	4.1 in.	15.4 lb	10.4 lb	21,750 psi
GT3PM-NRS05250	M52 x 5	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	4.2 in.	15.4 lb	9.3 lb	21,750 psi
GT3P-NRS1500U08	1½"- 8un	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	3.7 in.	15.4 lb	12.6 lb	21,750 psi
GT3P-NRS1625U08	1⅝"- 8un	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	3.9 in.	15.4 lb	11.7 lb	21,750 psi
GT3P-NRS1750U08	1¾"- 8un	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	4.0 in.	15.4 lb	11.0 lb	21,750 psi
GT3P-NRS1875U08	1⅞"- 8un	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	4.1 in.	15.4 lb	10.1 lb	21,750 psi
GT3P-NRS2000U08	2"- 8un	GT3-LCB	7.95 in²	86.4 tons	6.3 in.	5.0 in.	1.8 in.	5.4 in.	10.1 in.	2.2 in.	4.2 in.	15.4 lb	9.3 lb	21,750 psi
GT4PM-NRS05250	M52 x 5	GT4-LCB	15.17 in²	164.9 tons	7.1 in.	5.6 in.	2.4 in.	6.9 in.	11.1 in.	2.8 in.	4.8 in.	26.9 lb	23.6 lb	21,750 psi
GT4PM-NRS05655	M56 x 5,5	GT4-LCB	15.17 in²	164.9 tons	7.1 in.	5.6 in.	2.4 in.	6.9 in.	11.1 in.	2.8 in.	4.9 in.	26.9 lb	22.3 lb	21,750 psi
GT4PM-NRS06055	M60 x 5,5	GT4-LCB	15.17 in²	164.9 tons	7.1 in.	5.6 in.	2.4 in.	6.9 in.	11.1 in.	2.8 in.	5.0 in.	26.9 lb	20.7 lb	21,750 psi
GT4PM-NRS06460	M64 x 6	GT4-LCB	15.17 in²	164.9 tons	7.1 in.	5.6 in.	2.4 in.	6.9 in.	11.1 in.	2.8 in.	5.1 in.	26.9 lb	19.4 lb	21,750 psi
GT4PM-NRS06860	M68 x 6	GT4-LCB	15.17 in²	164.9 tons	7.1 in.	5.6 in.	2.4 in.	6.9 in.	11.1 in.	2.8 in.	5.2 in.	26.9 lb	17.9 lb	21,750 psi
GT4P-NRS2000U08	2"- 8un	GT4-LCB	15.17 in²	164.9 tons	7.1 in.	5.6 in.	2.4 in.	6.9 in.	11.1 in.	2.8 in.	4.7 in.	26.9 lb	23.6 lb	21,750 psi
GT4P-NRS2250U08	2¼"- 8un	GT4-LCB	15.17 in²	164.9 tons	7.1 in.	5.6 in.	2.4 in.	6.9 in.	11.1 in.	2.8 in.	5.0 in.	26.9 lb	21.4 lb	21,750 psi
GT4P-NRS2500U08	2½"- 8un	GT4-LCB	15.17 in²	164.9 tons	7.1 in.	5.6 in.	2.4 in.	6.9 in.	11.1 in.	2.8 in.	5.2 in.	26.9 lb	18.7 lb	21,750 psi
GT5PM-NRS06860	M68 x 6	GT5-LCB	23.37 in²	254.2 tons	8.0 in.	6.2 in.	3.1 in.	8.3 in.	11.9 in.	3.4 in.	5.8 in.	38.3 lb	38.1 lb	21,750 psi
GT5PM-NRS07260	M72 x 6	GT5-LCB	23.37 in²	254.2 tons	8.0 in.	6.2 in.	3.1 in.	8.3 in.	11.9 in.	3.4 in.	5.9 in.	38.3 lb	36.2 lb	21,750 psi
GT5PM-NRS07660	M76 x 6	GT5-LCB	23.37 in²	254.2 tons	8.0 in.	6.2 in.	3.1 in.	8.3 in.	11.9 in.	3.4 in.	6.0 in.	38.3 lb	34.2 lb	21,750 psi
GT5PM-NRS08060	M80 x 6	GT5-LCB	23.37 in²	254.2 tons	8.0 in.	6.2 in.	3.1 in.	8.3 in.	11.9 in.	3.4 in.	6.1 in.	38.3 lb	32.2 lb	21,750 psi
GT5P-NRS2500U08	2½"- 8un	GT5-LCB	23.37 in²	254.2 tons	8.0 in.	6.2 in.	3.1 in.	8.3 in.	11.9 in.	3.4 in.	5.8 in.	38.3 lb	39.2 lb	21,750 psi
GT5P-NRS2750U08	2¾"- 8un	GT5-LCB	23.37 in²	254.2 tons	8.0 in.	6.2 in.	3.1 in.	8.3 in.	11.9 in.	3.4 in.	6.0 in.	38.3 lb	35.9 lb	21,750 psi
GT5P-NRS3000U08	3"- 8un	GT5-LCB	23.37 in²	254.2 tons	8.0 in.	6.2 in.	3.1 in.	8.3 in.	11.9 in.	3.4 in.	6.2 in.	38.3 lb	32.6 lb	21,750 psi
GT5P-NRS3250U08	3¼"- 8un	GT5-LCB	23.37 in²	254.2 tons	8.0 in.	6.2 in.	3.1 in.	8.3 in.	11.9 in.	3.4 in.	6.3 in.	38.3 lb	28.9 lb	21,750 psi
GT6PM-NRS08060	M80 x 6	GT6-LCB	29.41 in²	319.8 tons	8.6 in.	6.8 in.	3.2 in.	9.4 in.	12.7 in.	3.7 in.	6.6 in.	61.3 lb	49.2 lb	21,750 psi
GT6PM-NRS08560	M85 x 6	GT6-LCB	29.41 in²	319.8 tons	8.6 in.	6.8 in.	3.2 in.	9.4 in.	12.7 in.	3.7 in.	6.7 in.	61.3 lb	46.3 lb	21,750 psi
GT6PM-NRS09060	M90 x 6	GT6-LCB	29.41 in²	319.8 tons	8.6 in.	6.8 in.	3.2 in.	9.4 in.	12.7 in.	3.7 in.	6.9 in.	61.3 lb	42.8 lb	21,750 psi
GT6PM-NRS09560	M95 x 6	GT6-LCB	29.41 in²	319.8 tons	8.6 in.	6.8 in.	3.2 in.	9.4 in.	12.7 in.	3.7 in.	7.0 in.	61.3 lb	39.7 lb	21,750 psi
GT6P-NRS3250U08	3¼"- 8un	GT6-LCB	29.41 in²	319.8 tons	8.6 in.	6.8 in.	3.2 in.	9.4 in.	12.7 in.	3.7 in.	6.8 in.	61.3 lb	45.6 lb	21,750 psi
GT6P-NRS3500U08	3½"- 8un	GT6-LCB	29.41 in²	319.8 tons	8.6 in.	6.8 in.	3.2 in.	9.4 in.	12.7 in.	3.7 in.	7.1 in.	61.3 lb	41.4 lb	21,750 psi
GT6P-NRS3750U08	3¾"- 8un	GT6-LCB	29.41 in²	319.8 tons	8.6 in.	6.8 in.	3.2 in.	9.4 in.	12.7 in.	3.7 in.	7.4 in.	61.3 lb	37.0 lb	21,750 psi
GT7PM-NRS10060	M100 x 6	GT7-LCB	40.90 in²	444.9 tons	9.6 in.	7.2 in.	3.5 in.	10.9 in.	13.1 in.	4.3 in.	7.7 in.	84.2 lb	62.8 lb	21,750 psi
GT7PM-NRS10560	M105 x 6	GT7-LCB	40.90 in²	444.9 tons	9.6 in.	7.2 in.	3.5 in.	10.9 in.	13.1 in.	4.3 in.	7.8 in.	84.2 lb	60.2 lb	21,750 psi
GT7P-NRS4000U08	4"- 8un	GT7-LCB	40.90 in²	444.9 tons	9.6 in.	7.2 in.	3.5 in.	10.9 in.	13.1 in.	4.3 in.	8.0 in.	84.2 lb	60.2 lb	21,750 psi

ENERPAC BOLTING

Aquajack® Subsea Bolt Tensioners

EAJ load cells and every quick-fastening nut thread variation.

ENERPAC

EAJ Load Cells

8 VARIATIONS

Eight Aquajack subsea load-cell sizes.

COMMON APPLICATIONSSubsea hydraulic bolt tensioning in offshore environments.

COMMON INDUSTRIESOffshore oil & gas, subsea construction and marine.

QUICK MODEL SELECTOR

Select a model aboveSelect a model to see its specifications.

VIEW ALL 8 MODELS & FULL SPECIFICATIONS+

Model	Hydraulic Effective Area	Maximum Load Capacity	Stroke	Overall Tool Height (A)	Tensioner Body Height (B)	Bridge / Base Width (C)	Load-Cell Outside Diameter (D)	Nearest Obstruction Clearance (E)	Bridge / Base Height (F)	Width Across Tool Centerline (G)	Required Stud Protrusion from Joint Face (H)	Tool Weight	Maximum Operating Pressure
EAJ1LC	1.56 in²	17.0 tons	0.79 in.	4.49 in.	3.58 in.	0.75 in.	2.60 in.	8.54 in.	1.38 in.	2.09 in.	4.69 in.	3.3 lb	21,750 psi
EAJ2LC	2.57 in²	28.0 tons	1.18 in.	5.79 in.	4.72 in.	0.98 in.	3.23 in.	11.38 in.	1.97 in.	2.44 in.	5.98 in.	6.6 lb	21,750 psi
EAJ3LC	3.91 in²	42.6 tons	1.18 in.	6.20 in.	5.16 in.	1.10 in.	3.86 in.	12.09 in.	2.28 in.	3.07 in.	6.42 in.	9.9 lb	21,750 psi
EAJ4LC	5.71 in²	62.2 tons	1.18 in.	6.73 in.	5.35 in.	1.30 in.	4.49 in.	12.56 in.	2.48 in.	3.58 in.	6.93 in.	13.2 lb	21,750 psi
EAJ5LC	9.16 in²	99.6 tons	1.18 in.	7.24 in.	5.75 in.	1.57 in.	5.47 in.	13.46 in.	2.76 in.	4.49 in.	7.44 in.	19.8 lb	21,750 psi
EAJ6LC	12.88 in²	140.2 tons	1.18 in.	7.91 in.	6.34 in.	1.93 in.	6.46 in.	14.45 in.	3.23 in.	5.43 in.	8.11 in.	28.7 lb	21,750 psi
EAJ7LC	19.17 in²	208.6 tons	1.18 in.	9.06 in.	7.01 in.	2.95 in.	7.56 in.	15.75 in.	3.74 in.	6.06 in.	9.25 in.	41.9 lb	21,750 psi
EAJ8LC	23.98 in²	260.9 tons	1.18 in.	9.72 in.	7.60 in.	2.68 in.	8.39 in.	16.22 in.	4.29 in.	7.17 in.	9.92 in.	54.0 lb	21,750 psi

ENERPAC

EAJ Quick Fastening Nuts

38 VARIATIONS

Available imperial and metric Quick Fastening Nut variation.

COMMON APPLICATIONSFast connection of Aquajack subsea tensioners to specific stud threads.

COMMON INDUSTRIESOffshore oil & gas and subsea maintenance.

QUICK MODEL SELECTOR

Select a model aboveSelect a model to see its specifications.

VIEW ALL 38 MODELS & FULL SPECIFICATIONS+

Model	Thread Size	Compatible Load Cell	Hydraulic Effective Area	Maximum Load Capacity	Stroke	Overall Tool Height (A)	Tensioner Body Height (B)	Bridge / Base Width (C)	Load-Cell Outside Diameter (D)	Nearest Obstruction Clearance (E)	Bridge / Base Height (F)	Width Across Tool Centerline (G)	Required Stud Protrusion from Joint Face (H)	Tool Weight	Maximum Operating Pressure
EAJ1QFN0750U10	3/4" - 10 UN	EAJ1LC	1.56 in²	17.0 tons	0.79 in.	4.49 in.	3.58 in.	0.75 in.	2.60 in.	8.54 in.	1.38 in.	2.09 in.	4.69 in.	3.3 lb	21,750 psi
EAJ1QFN0875U09	7/8" - 9 UN	EAJ1LC	1.56 in²	17.0 tons	0.79 in.	4.49 in.	3.58 in.	0.75 in.	2.60 in.	8.54 in.	1.38 in.	2.09 in.	4.69 in.	3.3 lb	21,750 psi
EAJ1QFNM02025	M20 x 2.5	EAJ1LC	1.56 in²	17.0 tons	0.79 in.	4.49 in.	3.58 in.	0.75 in.	2.60 in.	8.54 in.	1.38 in.	2.09 in.	4.69 in.	3.3 lb	21,750 psi
EAJ1QFNM02225	M22 x 2.5	EAJ1LC	1.56 in²	17.0 tons	0.79 in.	4.49 in.	3.58 in.	0.75 in.	2.60 in.	8.54 in.	1.38 in.	2.09 in.	4.69 in.	3.3 lb	21,750 psi
EAJ2QFN1000U08	1" - 8 UN	EAJ2LC	2.57 in²	28.0 tons	1.18 in.	5.79 in.	4.72 in.	0.98 in.	3.23 in.	11.38 in.	1.97 in.	2.44 in.	5.98 in.	6.6 lb	21,750 psi
EAJ2QFNM02430	M24 x 3	EAJ2LC	2.57 in²	28.0 tons	1.18 in.	5.79 in.	4.72 in.	0.98 in.	3.23 in.	11.38 in.	1.97 in.	2.44 in.	5.98 in.	6.6 lb	21,750 psi
EAJ2QFNM02730	M27 x 3	EAJ2LC	2.57 in²	28.0 tons	1.18 in.	5.79 in.	4.72 in.	0.98 in.	3.23 in.	11.38 in.	1.97 in.	2.44 in.	5.98 in.	6.6 lb	21,750 psi
EAJ2QFN1125U08	1-1/8" - 8 UN	EAJ2LC	2.57 in²	28.0 tons	1.18 in.	5.79 in.	4.72 in.	0.98 in.	3.23 in.	11.38 in.	1.97 in.	2.44 in.	5.98 in.	6.6 lb	21,750 psi
EAJ2QFNM03035	M30 x 3.5	EAJ2LC	2.57 in²	28.0 tons	1.18 in.	5.79 in.	4.72 in.	0.98 in.	3.23 in.	11.38 in.	1.97 in.	2.44 in.	5.98 in.	6.6 lb	21,750 psi
EAJ3QFN1250U08	1-1/4" - 8 UN	EAJ3LC	3.91 in²	42.6 tons	1.18 in.	6.20 in.	5.16 in.	1.10 in.	3.86 in.	12.09 in.	2.28 in.	3.07 in.	6.42 in.	9.9 lb	21,750 psi
EAJ3QFNM03335	M33 x 3.5	EAJ3LC	3.91 in²	42.6 tons	1.18 in.	6.20 in.	5.16 in.	1.10 in.	3.86 in.	12.09 in.	2.28 in.	3.07 in.	6.42 in.	9.9 lb	21,750 psi
EAJ3QFN1375U08	1-3/8" - 8 UN	EAJ3LC	3.91 in²	42.6 tons	1.18 in.	6.20 in.	5.16 in.	1.10 in.	3.86 in.	12.09 in.	2.28 in.	3.07 in.	6.42 in.	9.9 lb	21,750 psi
EAJ3QFNM03640	M36 x 4	EAJ3LC	3.91 in²	42.6 tons	1.18 in.	6.20 in.	5.16 in.	1.10 in.	3.86 in.	12.09 in.	2.28 in.	3.07 in.	6.42 in.	9.9 lb	21,750 psi
EAJ4QFN1500U08	1-1/2" - 8 UN	EAJ4LC	5.71 in²	62.2 tons	1.18 in.	6.73 in.	5.35 in.	1.30 in.	4.49 in.	12.56 in.	2.48 in.	3.58 in.	6.93 in.	13.2 lb	21,750 psi
EAJ4QFNM03940	M39 x 4	EAJ4LC	5.71 in²	62.2 tons	1.18 in.	6.73 in.	5.35 in.	1.30 in.	4.49 in.	12.56 in.	2.48 in.	3.58 in.	6.93 in.	13.2 lb	21,750 psi
EAJ4QFN1625U08	1-5/8" - 8 UN	EAJ4LC	5.71 in²	62.2 tons	1.18 in.	6.73 in.	5.35 in.	1.30 in.	4.49 in.	12.56 in.	2.48 in.	3.58 in.	6.93 in.	13.2 lb	21,750 psi
EAJ4QFNM04245	M42 x 4.5	EAJ4LC	5.71 in²	62.2 tons	1.18 in.	6.73 in.	5.35 in.	1.30 in.	4.49 in.	12.56 in.	2.48 in.	3.58 in.	6.93 in.	13.2 lb	21,750 psi
EAJ5QFN1750U08	1-3/4" - 8 UN	EAJ5LC	9.16 in²	99.6 tons	1.18 in.	7.24 in.	5.75 in.	1.57 in.	5.47 in.	13.46 in.	2.76 in.	4.49 in.	7.44 in.	19.8 lb	21,750 psi
EAJ5QFNM04545	M45 x 4.5	EAJ5LC	9.16 in²	99.6 tons	1.18 in.	7.24 in.	5.75 in.	1.57 in.	5.47 in.	13.46 in.	2.76 in.	4.49 in.	7.44 in.	19.8 lb	21,750 psi
EAJ5QFN1875U08	1-7/8" - 8 UN	EAJ5LC	9.16 in²	99.6 tons	1.18 in.	7.24 in.	5.75 in.	1.57 in.	5.47 in.	13.46 in.	2.76 in.	4.49 in.	7.44 in.	19.8 lb	21,750 psi
EAJ5QFNM04850	M48 x 5	EAJ5LC	9.16 in²	99.6 tons	1.18 in.	7.24 in.	5.75 in.	1.57 in.	5.47 in.	13.46 in.	2.76 in.	4.49 in.	7.44 in.	19.8 lb	21,750 psi
EAJ5QFN2000U08	2" - 8 UN	EAJ5LC	9.16 in²	99.6 tons	1.18 in.	7.24 in.	5.75 in.	1.57 in.	5.47 in.	13.46 in.	2.76 in.	4.49 in.	7.44 in.	19.8 lb	21,750 psi
EAJ5QFNM05250	M52 x 5	EAJ5LC	9.16 in²	99.6 tons	1.18 in.	7.24 in.	5.75 in.	1.57 in.	5.47 in.	13.46 in.	2.76 in.	4.49 in.	7.44 in.	19.8 lb	21,750 psi
EAJ6QFNM05655	M56 x 5.5	EAJ6LC	12.88 in²	140.2 tons	1.18 in.	7.91 in.	6.34 in.	1.93 in.	6.46 in.	14.45 in.	3.23 in.	5.43 in.	8.11 in.	28.7 lb	21,750 psi
EAJ6QFN2250U08	2-1/4" - 8 UN	EAJ6LC	12.88 in²	140.2 tons	1.18 in.	7.91 in.	6.34 in.	1.93 in.	6.46 in.	14.45 in.	3.23 in.	5.43 in.	8.11 in.	28.7 lb	21,750 psi
EAJ6QFNM06055	M60 x 5.5	EAJ6LC	12.88 in²	140.2 tons	1.18 in.	7.91 in.	6.34 in.	1.93 in.	6.46 in.	14.45 in.	3.23 in.	5.43 in.	8.11 in.	28.7 lb	21,750 psi
EAJ6QFN2500U08	2-1/2" - 8 UN	EAJ6LC	12.88 in²	140.2 tons	1.18 in.	7.91 in.	6.34 in.	1.93 in.	6.46 in.	14.45 in.	3.23 in.	5.43 in.	8.11 in.	28.7 lb	21,750 psi
EAJ6QFNM06460	M64 x 6	EAJ6LC	12.88 in²	140.2 tons	1.18 in.	7.91 in.	6.34 in.	1.93 in.	6.46 in.	14.45 in.	3.23 in.	5.43 in.	8.11 in.	28.7 lb	21,750 psi
EAJ7QFNM06860	M68 x 6	EAJ7LC	19.17 in²	208.6 tons	1.18 in.	9.06 in.	7.01 in.	2.95 in.	7.56 in.	15.75 in.	3.74 in.	6.06 in.	9.25 in.	41.9 lb	21,750 psi
EAJ7QFN2750U08	2-3/4" - 8 UN	EAJ7LC	19.17 in²	208.6 tons	1.18 in.	9.06 in.	7.01 in.	2.95 in.	7.56 in.	15.75 in.	3.74 in.	6.06 in.	9.25 in.	41.9 lb	21,750 psi
EAJ7QFNM07260	M72 x 6	EAJ7LC	19.17 in²	208.6 tons	1.18 in.	9.06 in.	7.01 in.	2.95 in.	7.56 in.	15.75 in.	3.74 in.	6.06 in.	9.25 in.	41.9 lb	21,750 psi
EAJ7QFNM07660	M76 x 6	EAJ7LC	19.17 in²	208.6 tons	1.18 in.	9.06 in.	7.01 in.	2.95 in.	7.56 in.	15.75 in.	3.74 in.	6.06 in.	9.25 in.	41.9 lb	21,750 psi
EAJ7QFN3000U08	3" - 8 UN	EAJ7LC	19.17 in²	208.6 tons	1.18 in.	9.06 in.	7.01 in.	2.95 in.	7.56 in.	15.75 in.	3.74 in.	6.06 in.	9.25 in.	41.9 lb	21,750 psi
EAJ8QFNM08060	M80 x 6	EAJ8LC	23.98 in²	260.9 tons	1.18 in.	9.72 in.	7.60 in.	2.68 in.	8.39 in.	16.22 in.	4.29 in.	7.17 in.	9.92 in.	54.0 lb	21,750 psi
EAJ8QFN3250U08	3-1/4" - 8 UN	EAJ8LC	23.98 in²	260.9 tons	1.18 in.	9.72 in.	7.60 in.	2.68 in.	8.39 in.	16.22 in.	4.29 in.	7.17 in.	9.92 in.	54.0 lb	21,750 psi
EAJ8QFNM08560	M85 x 6	EAJ8LC	23.98 in²	260.9 tons	1.18 in.	9.72 in.	7.60 in.	2.68 in.	8.39 in.	16.22 in.	4.29 in.	7.17 in.	9.92 in.	54.0 lb	21,750 psi
EAJ8QFN3500U08	3-1/2" - 8 UN	EAJ8LC	23.98 in²	260.9 tons	1.18 in.	9.72 in.	7.60 in.	2.68 in.	8.39 in.	16.22 in.	4.29 in.	7.17 in.	9.92 in.	54.0 lb	21,750 psi
EAJ8QFNM09060	M90 x 6	EAJ8LC	23.98 in²	260.9 tons	1.18 in.	9.72 in.	7.60 in.	2.68 in.	8.39 in.	16.22 in.	4.29 in.	7.17 in.	9.92 in.	54.0 lb	21,750 psi

ENERPAC BOLTING

Power Generation Bolt Tensioners

Single-stage and double-deck power-generation tensioners with exact model data.

ENERPAC

PGT Power Generation Tensioners

31 VARIATIONS

All published PGT models.

COMMON APPLICATIONSTurbine casing, wind turbine and other power-generation bolting.

COMMON INDUSTRIESWind, gas turbine, steam turbine and power-generation maintenance.

QUICK MODEL SELECTOR

Select a model aboveSelect a model to see its specifications.

VIEW ALL 31 MODELS & FULL SPECIFICATIONS+

Model	Tensioner Type	Thread Diameter	Nut Size Across Flats	Maximum Pressure	Hydraulic Pressure Area	Maximum Load Capacity	Stroke	Overall Tool Width (A)	Base Width (B)	Foot / Bridge Width (C)	Overall Tool Height (D)	Nut Run-Down Gear / Clearance (E)	Puller-Bar Square Drive (S)	Tool Weight	Minimum Bolt Protrusion	Maximum Bolt Protrusion
PGTS2030S	Single Stage	M20 x 2,5	1.18 in.	21,750 psi	2.10 in²	22.9 tons	0.28 in.	2.52 in.	2.52 in.	1.26 in.	3.19 in.	3.07 in.	⅜	4.4 lb	1.73 in.	2.17 in.
PGTS2436S	Single Stage	M24 x 3,0	1.42 in.	21,750 psi	3.02 in²	32.8 tons	0.28 in.	3.03 in.	3.03 in.	1.22 in.	3.86 in.	3.20 in.	⅜	6.4 lb	1.93 in.	2.44 in.
PGTS2742S	Single Stage	M27 x 3,0	1.65 in.	21,750 psi	4.10 in²	44.6 tons	0.31 in.	3.62 in.	2.95 in.	1.34 in.	5.08 in.	3.27 in.	⅜	10.6 lb	2.36 in.	2.76 in.
PGTS3046S	Single Stage	M30 x 3,5	1.81 in.	21,750 psi	4.97 in²	54.0 tons	0.31 in.	3.90 in.	3.35 in.	1.50 in.	5.28 in.	3.46 in.	⅜	12.8 lb	2.68 in.	2.87 in.
PGTS3350S	Single Stage	M33 x 3,5	1.97 in.	21,750 psi	6.14 in²	66.8 tons	0.31 in.	4.17 in.	3.54 in.	1.57 in.	5.59 in.	3.54 in.	⅜	14.9 lb	2.95 in.	3.94 in.
PGTS3655S	Single Stage	M36 x 4,0	2.17 in.	21,750 psi	6.92 in²	75.3 tons	0.35 in.	4.37 in.	3.54 in.	2.19 in.	5.04 in.	3.75 in.	½	14.1 lb	2.90 in.	3.74 in.
PGTS3960S	Single Stage	M39 x 4,0	2.36 in.	21,750 psi	8.62 in²	93.8 tons	0.39 in.	4.86 in.	4.09 in.	1.81 in.	6.30 in.	3.78 in.	⅜	21.5 lb	3.50 in.	4.53 in.
PGTS4265S	Single Stage	M42 x 4,5	2.56 in.	21,750 psi	9.70 in²	105.6 tons	0.39 in.	5.28 in.	4.53 in.	2.65 in.	6.97 in.	3.90 in.	½	20.9 lb	3.11 in.	4.53 in.
PGTS4570S	Single Stage	M45 x 4,5	2.76 in.	21,750 psi	11.63 in²	126.6 tons	0.39 in.	5.63 in.	4.69 in.	2.07 in.	6.61 in.	4.02 in.	⅜	29.1 lb	3.86 in.	4.57 in.
PGTS4875S	Single Stage	M48 x 5,0	2.95 in.	21,750 psi	13.00 in²	141.5 tons	0.39 in.	5.98 in.	4.92 in.	2.20 in.	6.22 in.	4.17 in.	⅜	29.3 lb	4.06 in.	4.69 in.
PGTS5280S	Single Stage	M52 x 5,0	3.15 in.	21,750 psi	15.65 in²	170.2 tons	0.39 in.	6.50 in.	5.28 in.	2.30 in.	6.73 in.	4.25 in.	⅜	39.5 lb	4.17 in.	4.65 in.
PGTS5685S	Single Stage	M56 x 5,5	3.35 in.	21,750 psi	18.08 in²	196.7 tons	0.39 in.	6.97 in.	5.59 in.	2.44 in.	6.69 in.	4.41 in.	⅜	45.0 lb	4.57 in.	5.04 in.
PGTS6090S	Single Stage	M60 x 5,5	3.54 in.	21,750 psi	20.89 in²	227.3 tons	0.39 in.	7.48 in.	5.98 in.	2.60 in.	7.32 in.	4.53 in.	⅜	54.6 lb	4.86 in.	5.39 in.
PGTS6495S	Single Stage	M64 x 6,0	3.74 in.	21,750 psi	23.74 in²	258.3 tons	0.39 in.	7.87 in.	6.26 in.	2.70 in.	8.15 in.	4.65 in.	½	67.7 lb	5.39 in.	5.91 in.
PGTS68100S	Single Stage	M68 x 6,0	3.94 in.	21,750 psi	27.11 in²	295.0 tons	0.39 in.	8.41 in.	6.65 in.	2.85 in.	8.11 in.	4.84 in.	½	75.6 lb	5.35 in.	5.83 in.
PGTS72105S	Single Stage	M72 x 6,0	4.13 in.	21,750 psi	30.69 in²	333.9 tons	0.39 in.	8.86 in.	7.01 in.	2.99 in.	8.78 in.	4.96 in.	½	88.9 lb	5.94 in.	6.57 in.
PGTD2436S	Double Deck	M24 x 3,0	1.42 in.	19,575 psi	3.55 in²	34.8 tons	0.24 in.	4.69 in.	3.03 in.	1.22 in.	7.28 in.	3.19 in.	⅜	10.1 lb	2.09 in.	2.34 in.
PGTD2742S	Double Deck	M27 x 3,0	1.65 in.	19,575 psi	4.56 in²	44.6 tons	0.24 in.	4.92 in.	2.95 in.	1.34 in.	7.72 in.	3.28 in.	⅜	11.6 lb	2.36 in.	2.68 in.
PGTD3046S	Double Deck	M30 x 3,5	1.81 in.	19,575 psi	5.31 in²	52.0 tons	0.28 in.	5.28 in.	3.35 in.	1.46 in.	7.68 in.	3.46 in.	⅜	12.7 lb	2.36 in.	2.76 in.
PGTD3350S	Double Deck	M33 x 3,5	1.97 in.	19,575 psi	6.62 in²	64.8 tons	0.28 in.	5.59 in.	3.03 in.	1.52 in.	8.19 in.	3.54 in.	⅜	14.7 lb	2.56 in.	3.03 in.
PGTD3655S	Double Deck	M36 x 4,0	2.17 in.	19,575 psi	7.74 in²	75.8 tons	0.31 in.	5.98 in.	3.27 in.	1.61 in.	8.58 in.	3.66 in.	½	17.1 lb	2.76 in.	3.43 in.
PGTD3960S	Double Deck	M39 x 4,0	2.36 in.	19,575 psi	9.70 in²	95.0 tons	0.39 in.	6.26 in.	4.09 in.	1.89 in.	10.47 in.	3.78 in.	⅜	27.6 lb	3.31 in.	3.66 in.
PGTD4265S	Double Deck	M42 x 4,5	2.56 in.	19,575 psi	10.64 in²	104.2 tons	0.39 in.	6.69 in.	4.09 in.	2.05 in.	9.78 in.	3.90 in.	½	25.0 lb	3.23 in.	3.58 in.
PGTD4570S	Double Deck	M45 x 4,5	2.76 in.	19,575 psi	12.93 in²	126.6 tons	0.39 in.	6.97 in.	4.69 in.	2.09 in.	11.57 in.	4.09 in.	⅜	38.9 lb	3.82 in.	4.21 in.
PGTD4875S	Double Deck	M48 x 5,0	2.95 in.	19,575 psi	14.62 in²	143.1 tons	0.39 in.	4.53 in.	4.92 in.	2.26 in.	11.97 in.	4.17 in.	⅜	44.3 lb	4.06 in.	4.45 in.
PGTD5280S	Double Deck	M52 x 5,0	3.15 in.	19,575 psi	17.50 in²	171.3 tons	0.39 in.	4.88 in.	5.28 in.	2.40 in.	12.91 in.	4.25 in.	⅜	57.5 lb	4.33 in.	4.94 in.
PGTD5685S	Double Deck	M56 x 5,5	3.35 in.	19,575 psi	20.06 in²	196.4 tons	0.39 in.	5.20 in.	5.59 in.	2.56 in.	13.62 in.	4.41 in.	⅜	66.1 lb	4.61 in.	5.22 in.
PGTD6090S	Double Deck	M60 x 5,5	3.54 in.	19,575 psi	23.30 in²	228.2 tons	0.39 in.	5.55 in.	5.98 in.	2.78 in.	14.65 in.	4.53 in.	⅜	81.9 lb	4.92 in.	5.63 in.
PGTD6495S	Double Deck	M64 x 6,0	3.74 in.	19,575 psi	26.54 in²	259.9 tons	0.39 in.	5.94 in.	6.26 in.	2.99 in.	15.20 in.	4.69 in.	½	94.8 lb	5.24 in.	6.00 in.
PGTD68100S	Double Deck	M68 x 6,0	3.94 in.	19,575 psi	30.25 in²	296.2 tons	0.39 in.	6.30 in.	6.69 in.	3.15 in.	15.67 in.	4.84 in.	½	109.1 lb	5.43 in.	6.30 in.
PGTD72105S	Double Deck	M72 x 6,0	4.13 in.	19,575 psi	34.06 in²	333.6 tons	0.39 in.	6.73 in.	6.97 in.	3.48 in.	16.89 in.	4.96 in.	½	132.5 lb	5.75 in.	6.73 in.

ENERPAC BOLTING

Foundation Bolt Tensioners

Round FTR and elliptical FTE foundation tensioners.

ENERPAC

FTR Foundation Bolt Tensioners

9 VARIATIONS

All published FTR foundation tensioner models.

COMMON APPLICATIONSRound-tool foundation bolt tensioning on wind towers.

COMMON INDUSTRIESWind energy and tower foundations.

QUICK MODEL SELECTOR

Select a model aboveSelect a model to see its specifications.

VIEW ALL 9 MODELS & FULL SPECIFICATIONS+

Model	Bar Grade	Bolt Diameter	Bar Size Designation	Nut Size Across Flats	Maximum Pressure	Hydraulic Pressure Area	Maximum Load Capacity	Stroke	Overall Tool Width (A)	Base Width (B)	Foot / Bridge Width (C)	Overall Tool Height (D)	Run-Down Gear / Clearance Width (E)	Tool Weight	Minimum Bolt Protrusion
FTR751010S	75 ksi	1.38 in. / 35 mm	#10	2.00 in.	17,400 psi	4.86 in²	42.3 tons	0.39 in.	3.90 in.	3.48 in.	1.74 in.	6.42 in.		12.9 lb	7.87 in.
FTR751025S	75 ksi	1.38 in. / 35 mm	#10	2.00 in.	17,400 psi	4.84 in²	42.1 tons	0.98 in.	4.53 in.	4.02 in.	1.65 in.	8.64 in.		24.1 lb	9.84 in.
FTR751110S	75 ksi	1.50 in. / 38 mm	#11	2.25 in.	21,750 psi	4.86 in²	52.8 tons	0.39 in.	3.90 in.	3.86 in.	1.50 in.	7.01 in.		12.1 lb	8.66 in.
FTR751125SG	75 ksi	1.50 in. / 38 mm	#11	2.25 in.	21,750 psi	4.84 in²	52.7 tons	0.98 in.	4.53 in.	4.02 in.	2.01 in.	8.92 in.	3.78 in.	25.3 lb	10.24 in.
FTR751420S	75 ksi	1.88 in. / 48 mm	#14	2.75 in.	16,965 psi	9.44 in²	80.1 tons	0.79 in.	5.20 in.	5.20 in.	2.60 in.	10.55 in.		40.2 lb	12.40 in.
FTR15012510S	150 ksi	1.44 in. / 37 mm	1.25	2.25 in.	16,965 psi	8.34 in²	90.8 tons	0.39 in.	4.37 in.	4.33 in.	1.57 in.	7.01 in.		18.2 lb	8.66 in.
FTR15013810S	150 ksi	1.56 in. / 40 mm	1.37	2.50 in.	21,750 psi	8.34 in²	90.8 tons	0.39 in.	4.37 in.	4.33 in.	1.50 in.	7.01 in.		17.8 lb	8.86 in.
FTR15025025S	150 ksi	2.75 in. / 70 mm	2.50	4.25 in.	21,750 psi	28.27 in²	307.5 tons	1.00 in.	8.44 in.	8.35 in.	3.39 in.	13.68 in.		127. lb	8 17.72 in.
FTR1093610SG	10.9	1.42 in. / 36 mm	36	2.36 in.	21,750 psi	5.92 in²	64.4 tons	0.39 in.	4.02 in.	3.90 in.	1.57 in.	6.93 in.	3.74 in.	19.0 lb	7.68 in.

ENERPAC

FTE Foundation Bolt Tensioners

5 VARIATIONS

All published FTE narrow-access tensioner models.

COMMON APPLICATIONSElliptical narrow-access foundation bolt tensioning.

COMMON INDUSTRIESWind energy and restricted-access tower foundations.

QUICK MODEL SELECTOR

Select a model aboveSelect a model to see its specifications.

VIEW ALL 5 MODELS & FULL SPECIFICATIONS+

Model	Bar Grade	Bolt Diameter	Bar Size Designation	Nut Size Across Flats	Maximum Pressure	Hydraulic Pressure Area	Maximum Load Capacity	Stroke	Overall Tool Height / Length (A)	Tool Width (B)	Base Width (C)	Overall Tool Length / Height (D)	Tool Weight	Minimum Bolt Protrusion
FTE7510S	75 ksi	1.38 in. / 35 mm	#10	2.00 in.	17,400 psi	4.82 in²	41.9 tons	0.39 in.	6.69 in.	3.23 in.	5.59 in.	5.81 in.	18.2 lb	7.87 in.
FTE7511S	75 ksi	1.50 in. / 38 mm	#11	2.25 in.	21,750 psi	4.82 in²	52.4 tons	0.39 in.	6.69 in.	3.23 in.	5.59 in.	5.81 in.	18.2 lb	8.66 in.
FTE150138S	150 ksi	1.56 in. / 40 mm	1.375	2.25 in.	17,400 psi	7.86 in²	68.4 tons	0.39 in.	8.74 in.	3.90 in.	6.34 in.	8.01 in.	41.7 lb	9.45 in.
FTE150125S	150 ksi	1.44 in. / 37 mm	1.250	2.50 in.	21,750 psi	7.86 in²	85.6 tons	0.39 in.	8.74 in.	3.90 in.	6.34 in.	8.01 in.	40.8 lb	9.06 in.
FTE8836S	8.8	1.42 in. / 36 mm	36	2.36 in.	21,750 psi	4.82 in²	52.4 tons	0.39 in.	5.59 in.	3.23 in.	5.59 in.	5.81 in.	21.3 lb	7.09 in.

NORTHLAND AIR HYDRAULICS • EDMONTON

Enerpac Bolt Tensioning in Edmonton

Northland can help match the load cell, adaptor, bridge, pump and high-pressure hose system to the stud thread, nut dimensions, bolt load and available clearance.
