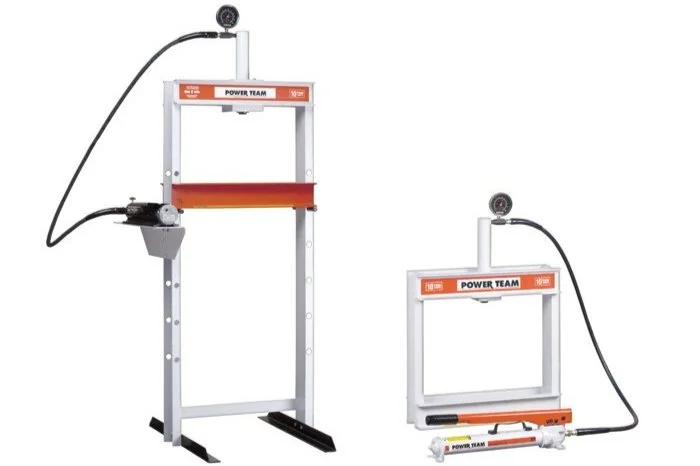

The press range shown here includes 10-ton bench/floor models, 25-ton C-frame and H-frame models, 55-ton and 100-ton H-frame presses, 150- and 200-ton heavy H-frame presses, and 80- to 200-ton Roll-Bed® presses.

Single-acting cylinders use hydraulic pressure in one direction and return by spring or load depending on the cylinder. Double-acting cylinders use hydraulic pressure for both advance and retract, giving positive powered return.

For higher cycle counts or when faster approach is important, an air or electric hydraulic pump reduces manual effort and generally moves the cylinder faster before the pressing load is reached.

The 25-ton Open-End-Access™ design allows the cylinder to be mounted on a frame extension so work that does not fit between the uprights can still be pressed.

The Roll-Bed® lower bed extends outward for loading and unloading with a crane or lifting device. The rolling bed supports up to 3,000 lb while raised on the rollers.
