Hydraulic Skidding Systems
- Capacity
- 140–400 tons
- Push/Pull Stroke
- 23.62 in.
Heavy Lifting Technology • Edmonton, Alberta
Heavy Lifting Equipment & Hydraulic Load-Movement Systems in Alberta.
Northland supports engineered heavy-lifting and load-movement applications across Alberta with hydraulic gantries, strand jacks, skidding systems, jack-up systems, controlled lifting pumps, trolley systems and synchronous hoist technology. Start with the load, required movement and site constraints — Northland can help narrow down the equipment.
Lift
Skid & Travel
Rotate & Position
Synchronize & Control
Heavy Lifting Equipment
Start with how the load needs to move.
Heavy lifting projects rarely start with a model number. They start with load weight, dimensions, center of gravity, lift points, required travel, available clearance and site limitations. Compare the equipment families below by capacity, travel and control requirements, then explore the system that fits your application.
Horizontal Load Movement
Hydraulic Skidding Systems
Move heavy loads along a prepared track using hydraulic push-pull cylinders and low-friction skid surfaces.
Capacity140–400 tonsPush/Pull Stroke23.62 in.
View Skidding Systems →
Multi-Point Control

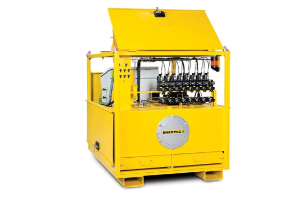

Controlled Lifting Pumps
Coordinate multiple hydraulic cylinders for controlled multi-point lifting, lowering and structural positioning.
FunctionSynchronous multi-point liftingOil Capacity5–66 gal.Max. Operating Pressure10,000 psi
View Controlled Lifting Pumps →
Track Movement

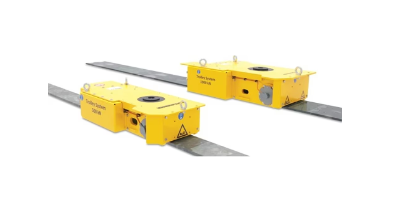

Trolley Systems
Electrically driven trolleys move heavy loads along fixed tracks for controlled horizontal positioning.
Capacity per Trolley50–100 tonsTravel Speed82–164 ft/hrMotor Size0.5–1.0
View Trolley Systems →
Load Rotation
Hydraulic Turntables
Rotate large loads during, before or after lifting and skidding operations when controlled directional change is required.
Capacity225–450 tonsCylinder Capacity25 tonsMax. Operating Pressure10,000 psi
Explore Turntables & Custom Lift →
Synchronized Tower Lifting

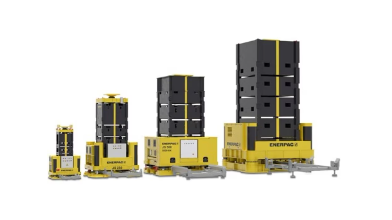

Jack-Up Systems
Computer-controlled multi-point lifting systems that build mechanical lifting towers beneath large loads.
Capacity per Unit56–825 tonsLift Height6–66 ft
View Jack-Up Systems →
Long-Distance Vertical Lifting

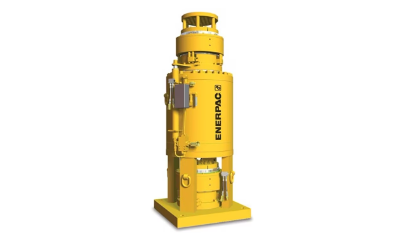

Hydraulic Strand Jacks
Lift or lower massive loads over distances beyond conventional cylinder stroke using hydraulic strand-jack technology.
Capacity17–1,405 tonsStroke9.8–23.6 in.Max. Operating Pressure5,000 psi
View Strand Jacks →
Overhead Lifting & Positioning

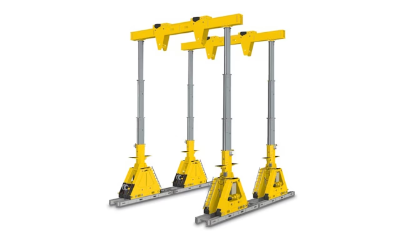

Hydraulic Gantries
Lift and position heavy equipment where conventional cranes cannot fit or permanent overhead lifting structures are unavailable.
Capacity110–1,178 tonsLift Height6.73–39.28 ftRetracted Height6.23–16.42 ft
View Hydraulic Gantries →
Custom Vertical + Horizontal Movement
Strand Jack Gantries
Custom systems combining long-distance strand-jack lifting with gantry or skidding capability for confined and complex projects.
ConfigurationCustom / project-specific
View Strand Jack Gantries →
Below-the-Hook Precision
Synchronous Hoist Systems
Hydraulic sling adjustment for precise positioning of heavy and unbalanced loads beneath a crane hook.
Capacity60–250 tonsStroke19.69–59.06 in.Accuracy over Full Stroke±0.04 in.
View Synchronous Hoist Systems →
Northland Heavy Lifting Quick Specs
Compare heavy-lifting capacities and capabilities.
Use these capacity, travel and pressure ranges to narrow the equipment family. Final selection depends on the exact load, configuration, model and project conditions.
Controlled Lifting Pumps
- Function
- Synchronous multi-point lifting
- Oil Capacity
- 5–66 gal.
- Max. Operating Pressure
- 10,000 psi
Trolley Systems
- Capacity per Trolley
- 50–100 tons
- Travel Speed
- 82–164 ft/hr
- Motor Size
- 0.5–1.0
Hydraulic Turntables
- Capacity
- 225–450 tons
- Cylinder Capacity
- 25 tons
- Max. Operating Pressure
- 10,000 psi
Jack-Up Systems
- Capacity per Unit
- 56–825 tons
- Lift Height
- 6–66 ft
Hydraulic Strand Jacks
- Capacity
- 17–1,405 tons
- Stroke
- 9.8–23.6 in.
- Max. Operating Pressure
- 5,000 psi
Hydraulic Gantries
- Capacity
- 110–1,178 tons
- Lift Height
- 6.73–39.28 ft
- Retracted Height
- 6.23–16.42 ft
Synchronous Hoist Systems
- Capacity
- 60–250 tons
- Stroke
- 19.69–59.06 in.
- Accuracy over Full Stroke
- ±0.04 in.
Important: Published capacities and ranges vary by model and configuration. Do not select heavy-lifting equipment from a maximum-capacity number alone. Northland should review load weight, center of gravity, lift points, travel, clearance, synchronization and site conditions before final equipment selection.
Which Heavy Lifting System Fits?
Start with the movement the project actually needs.
Heavy lifting systems solve different problems. A project may need one technology or a combination of several.
01 · LIFT
Raise a massive load
Gantries, jack-up systems, strand jacks and multi-point hydraulic lifting can all provide controlled vertical movement.
Discuss the Lift →02 · MOVE
Travel horizontally
Skidding and trolley systems move large equipment across controlled tracks when rolling or crane movement is not practical.
Explore Skidding →03 · POSITION
Place it accurately
Synchronous systems, gantries and turntables can help control final position, rotation and load alignment.
Explore Controlled Lifting →04 · CUSTOM
The job does not fit a standard box
Explore custom heavy-lifting solutions for unusual loads, restricted access and application-specific movement requirements.
View Industry-Specific Systems →Enerpac Heavy Lifting Technology
Heavy lifting systems backed by Northland’s hydraulic experience.
Official Enerpac website ↗
Northland is your local starting point.
Northland is an authorized Enerpac distributor, warranty depot and service centre in Edmonton. For heavy-lifting projects, send us the load, movement, lift points, clearances and site conditions. We can help connect the application to the appropriate Enerpac heavy-lifting technology and the hydraulic equipment around it.
Talk to Northland About the Project →Heavy Lifting Applications
Built for projects where load movement has to be planned, controlled and repeatable.
These systems are used for industrial machinery moves, bridge and infrastructure work, heavy-haul and rigging projects, power-generation equipment, mining maintenance and other high-capacity lifting or positioning work where controlled hydraulic movement matters.
Heavy Transport & Rigging
Lift, skid, rotate and position heavy equipment during moves, load-outs and final placement.
Bridge & Infrastructure
Controlled lifting, launching, levelling and positioning for bridge and structural work.
Plant & Machinery Moves
Move transformers, turbines, presses, vessels and production equipment where access is restricted.
Energy & Power
Heavy-component installation, maintenance and controlled lifting for power-generation projects.
Mining & Industrial
High-tonnage lifting and load movement for shutdowns, maintenance and equipment replacement.
Custom Projects
Application-specific heavy lifting where standard equipment alone does not solve the movement problem.
Why Northland?
A heavy lift needs more than a product catalogue.
Start with the load. We’ll work from there.
Northland works with high-pressure hydraulic systems, cylinders, pumps, controls, hoses, gauges and repair support every day. That means the conversation can start with the project rather than forcing you to identify the exact system first.
Send Project Details →Edmonton-based hydraulic sales and technical support
Authorized Enerpac sales, warranty and service capability
Support for pumps, cylinders, controls and complete hydraulic setups
Heavy-transport, rigging and industrial application experience
Heavy Lifting Equipment & Support
Explore heavy lifting systems and services.
Find equipment details, explore rental and repair support, or send Northland your project requirements.
Browse heavy lifting technology
Equipment selection, rentals and service
Edmonton, Alberta & Western Canada
Heavy lifting technology support from Northland in Edmonton.
Northland supports industrial lifting, rigging, transport, infrastructure and equipment-movement projects from Edmonton throughout Alberta and Western Canada.
EdmontonNiskuLeducSherwood ParkFort SaskatchewanAchesonAlbertaWestern Canada
Frequently Asked Questions
Heavy lifting equipment & load-movement FAQs.
Where can I source heavy lifting equipment in Alberta?
Northland Air Hydraulics supports heavy-lifting applications from Edmonton, including hydraulic gantries, skidding systems, strand jacks, controlled lifting pumps, jack-up systems, trolley systems and synchronous hoist systems.
What is a hydraulic skidding system used for?
A hydraulic skidding system moves heavy loads horizontally along a prepared track using hydraulic push-pull cylinders and low-friction skid surfaces.
When would I use a hydraulic gantry instead of a crane?
Hydraulic gantries can be useful where conventional crane access is restricted or where a load must be lifted and positioned within a confined industrial space.
What are strand jacks used for?
Strand jacks are used for controlled lifting and lowering over distances greater than a conventional cylinder stroke. They are used in heavy construction, bridge work, industrial moves and other high-capacity lifting applications.
What does a controlled lifting pump do?
Controlled lifting pumps coordinate hydraulic flow to multiple cylinders so several lifting points can move together with better control than independently operated pumps.
Can Northland help with a custom heavy-lifting application?
Yes. Northland can help with standard and custom heavy-lifting systems. Send the load weight, dimensions, movement, lift points, clearance and site conditions.
Does Northland support heavy transport and heavy-haul projects?
Yes. Northland supports heavy transport and heavy-haul applications with lifting, skidding, synchronized movement and load-positioning equipment.
Can heavy-lifting hydraulic equipment be rented?
Northland has a hydraulic equipment rental program. Availability varies, so contact Northland with the load, stroke, pressure, control and project timing requirements.
What capacity are Northland’s hydraulic skidding systems?
The hydraulic skidding range is 140 to 400 tons, with a 23.62-inch push/pull stroke. Final selection depends on the specific system and project.
What capacity are Enerpac hydraulic gantries?
The hydraulic gantry range is 110 to 1,178 tons, with lift heights from 6.73 to 39.28 feet and retracted heights from 6.23 to 16.42 feet, depending on model.
How much can a strand jack lift?
The strand jack range includes capacities from 17 to 1,405 tons, stroke from 9.8 to 23.6 inches, and maximum operating pressure of 5,000 psi, depending on model.
How accurate is the synchronous hoist system?
The synchronous hoist system range has capacities from 60 to 250 tons, stroke from 19.69 to 59.06 inches, and published accuracy over full stroke of plus or minus 0.04 inches.
Know the load weight and where it has to end up?
That is enough to start. Send Northland the lift, movement, clearance and site details and we can help narrow down the heavy-lifting technology.
