Hydraulic Shop Equipment • Edmonton, Alberta
Hydraulic Foot Pumps
Northland Air Hydraulics supplies air/hydraulic and foot-operated hydraulic pumps for body repair, hydraulic rams, presses, fixtures and portable high-pressure shop equipment. Strongarm, OTC, Omega, Porto-Power and Simplex options are available for applications up to 10,000 psi.
Hands-Free Hydraulic Power
Operate the hydraulic system while keeping both hands on the work.
Foot pumps are a practical power source for hydraulic rams, body-repair equipment, presses, fixtures and shop tools. Air/hydraulic designs use shop air to generate high hydraulic pressure with foot-pedal control.
Body Repair & Rams
Power hydraulic rams and collision-repair equipment while keeping both hands available for positioning.
Presses & Fixtures
Foot control can simplify repetitive pressing, clamping and production-fixture applications.
Portable Hydraulics
Compact air/hydraulic pumps provide high-pressure power where an electric pump is unnecessary or impractical.
Choosing a Foot Pump
Pressure is only one part of the setup.
The pump also needs enough usable oil for the cylinder or ram, the correct valve function and the right air supply and hydraulic connections.
Maximum Pressure
Match pump pressure to the hydraulic tool or ram. Many shop foot-pump systems operate up to 10,000 psi.
Usable Oil Capacity
The reservoir must supply enough oil to extend the connected ram or cylinder through the required stroke.
Air Supply
Air/hydraulic pumps need adequate shop-air pressure and flow to perform as intended.
Single or Double Acting
The pump and control valve need to match whether the connected cylinder is single-acting or double-acting.
Control Style
Foot pedal, pendant and valve-control arrangements are available depending on the pump family and application.
Ports & Couplers
Confirm hose threads, couplers, pressure ratings and any adapters required to connect the complete system.
Featured Brands
Hydraulic foot pump manufacturers.
Strongarm ↗
OTC Tools ↗
Omega Lift Equipment ↗
Porto-Power ↗
Foot Pump Options
Air/hydraulic foot pumps for shop and repair applications.
Strongarm Air/Hydraulic Foot Pumps
Strongarm foot pumps provide hands-free air/hydraulic power for compatible rams, body-repair equipment and shop hydraulic systems.
Simplex GA9 Air-Over-Hydraulic Pumps
Simplex GA9 pumps include foot-pedal, pendant-control and double-acting configurations for pressing, industrial and general hydraulic applications.
OTC Air/Hydraulic Pumps
OTC offers 10,000 psi air/hydraulic pumps with foot-pedal pump, hold and release control for shop hydraulic applications.
Omega Foot Pumps
Omega offers 10,000 psi air-actuated hydraulic treadle pumps in multiple reservoir capacities for body repair and hydraulic service work.
Porto-Power Foot Pumps
Porto-Power by Blackhawk Automotive offers 10,000 psi air-operated foot pumps for hydraulic body repair and portable ram systems.
Product Examples
Air/hydraulic foot pumps from multiple manufacturers.
Foot-pump designs vary in reservoir size, controls, air requirements and usable oil capacity. These examples show several of the pump styles available for shop and repair applications.
Strongarm
401A Air/Hydraulic Foot Pump
10,000 psi air/hydraulic pump for hydraulic rams and portable shop equipment.
OTC
2510A Air/Hydraulic Pump
Foot-controlled 10,000 psi air/hydraulic pump with pump, hold and release control.

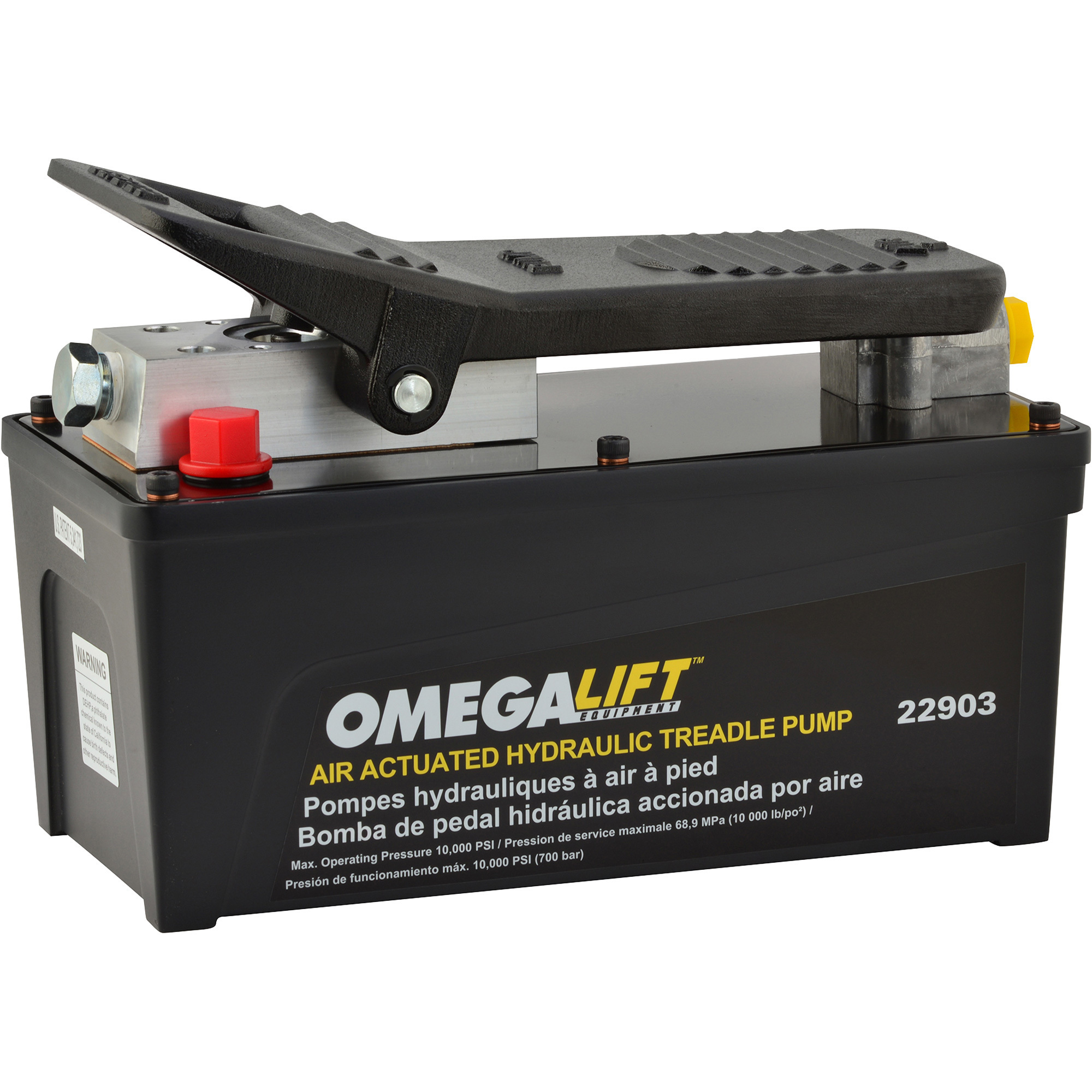

Omega Lift Equipment
Air-Actuated Hydraulic Treadle Pump
10,000 psi foot-operated pump for single-acting hydraulic rams and service applications.
Porto-Power by Blackhawk Automotive
B65425 Air Foot Operated Pump
10,000 psi air-operated pump with a 91.5 cu. in. usable oil reservoir.
Simplex
GA90 Air-Over-Hydraulic Pump
Compact 10,000 psi foot-actuated pump from the Simplex GA9 air-over-hydraulic family.
Why Northland
Hydraulic pump selection and service from one Edmonton shop.
Need to match a foot pump to a ram or cylinder?
Send the ram or cylinder model, required pressure, stroke and any pump information you already have. Northland can help check pressure, usable oil, controls, hoses and connections together.
Request a Quote →Related Equipment
Build the rest of the hydraulic setup.
Frequently Asked Questions
Hydraulic Foot Pump FAQs
Where can I buy an air/hydraulic foot pump in Edmonton?
Northland Air Hydraulics supplies air/hydraulic and hydraulic foot pumps from Edmonton, Alberta for body repair, hydraulic rams, presses and shop equipment.
How much pressure can a hydraulic foot pump produce?
Strongarm air/hydraulic foot pumps and Simplex GA9 air-over-hydraulic pump configurations are available for systems operating up to 10,000 psi.
How do I know if a foot pump has enough oil for my ram?
Compare the pump’s usable oil capacity with the oil volume required to extend the cylinder or ram through the required stroke. Northland can help check the pump and cylinder together.
Can a foot pump run a double-acting cylinder?
Some pump configurations support double-acting cylinders, but the pump, valve arrangement and oil capacity must all be matched to the cylinder.
Does Northland repair hydraulic foot pumps?
Northland repairs hydraulic and pneumatic equipment in Edmonton and can assess hydraulic pump problems, leaks, control issues and replacement options.
Need a hydraulic foot pump?
Send the ram or cylinder model, required pressure and application and Northland can help narrow the available foot-pump options.
